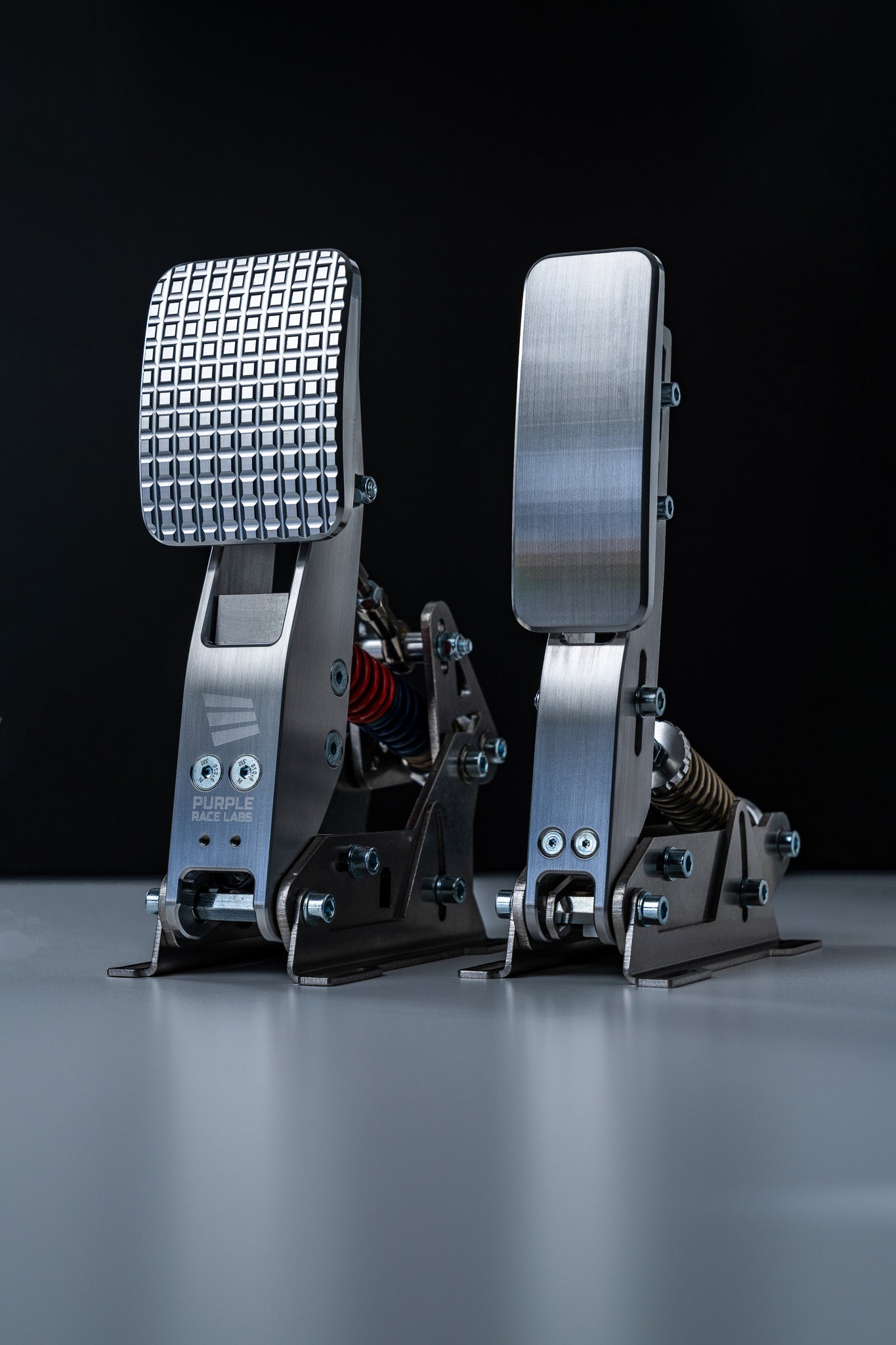

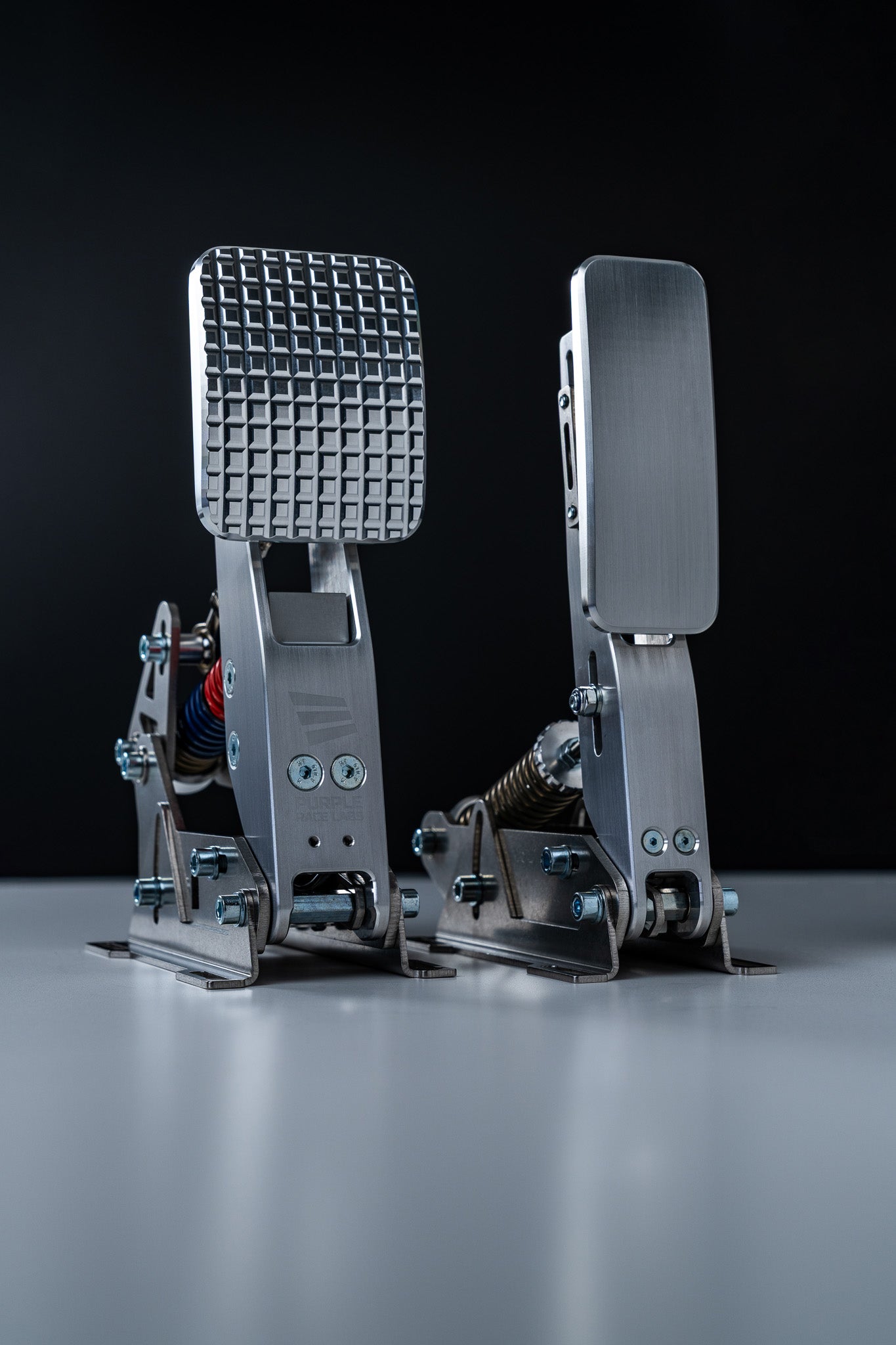

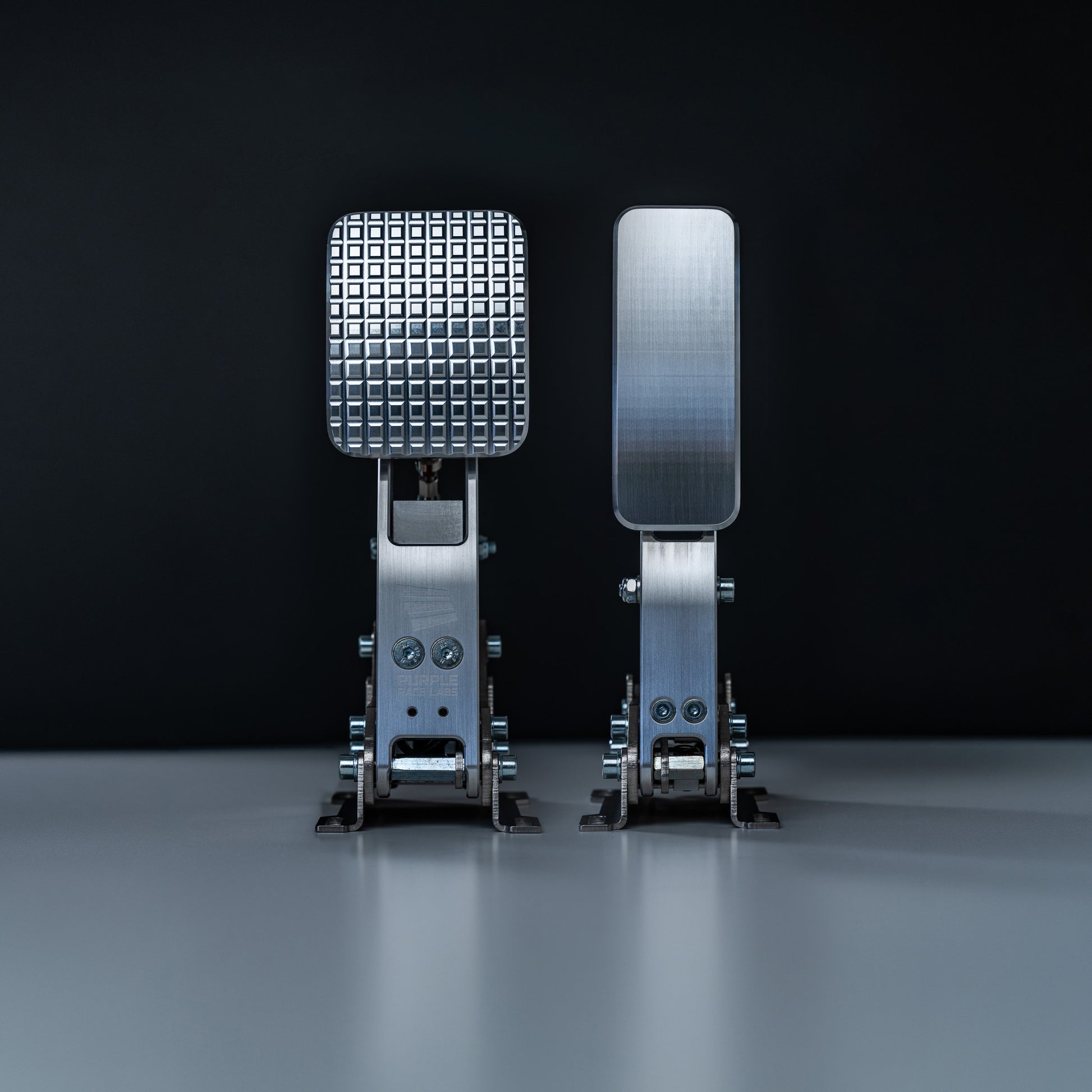

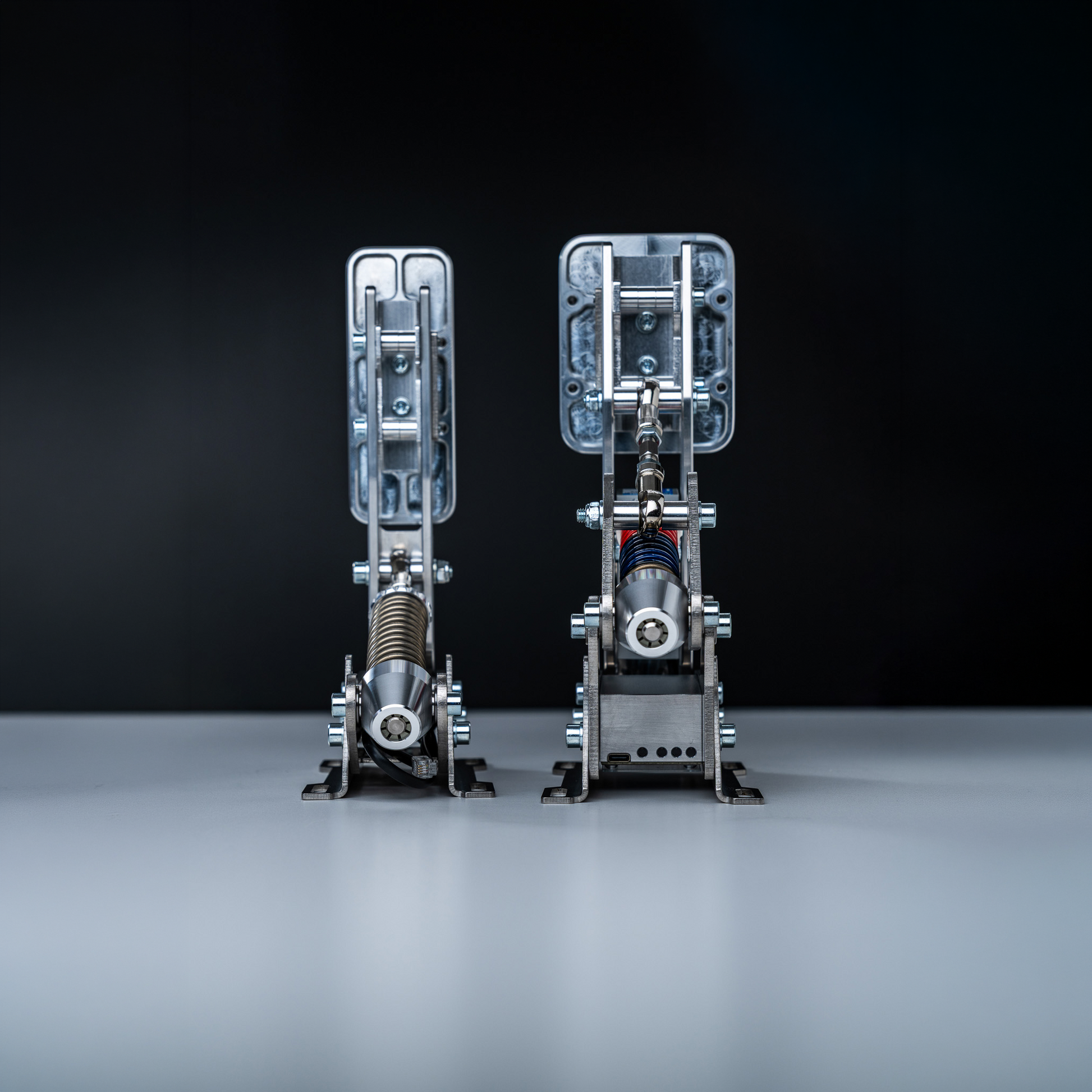

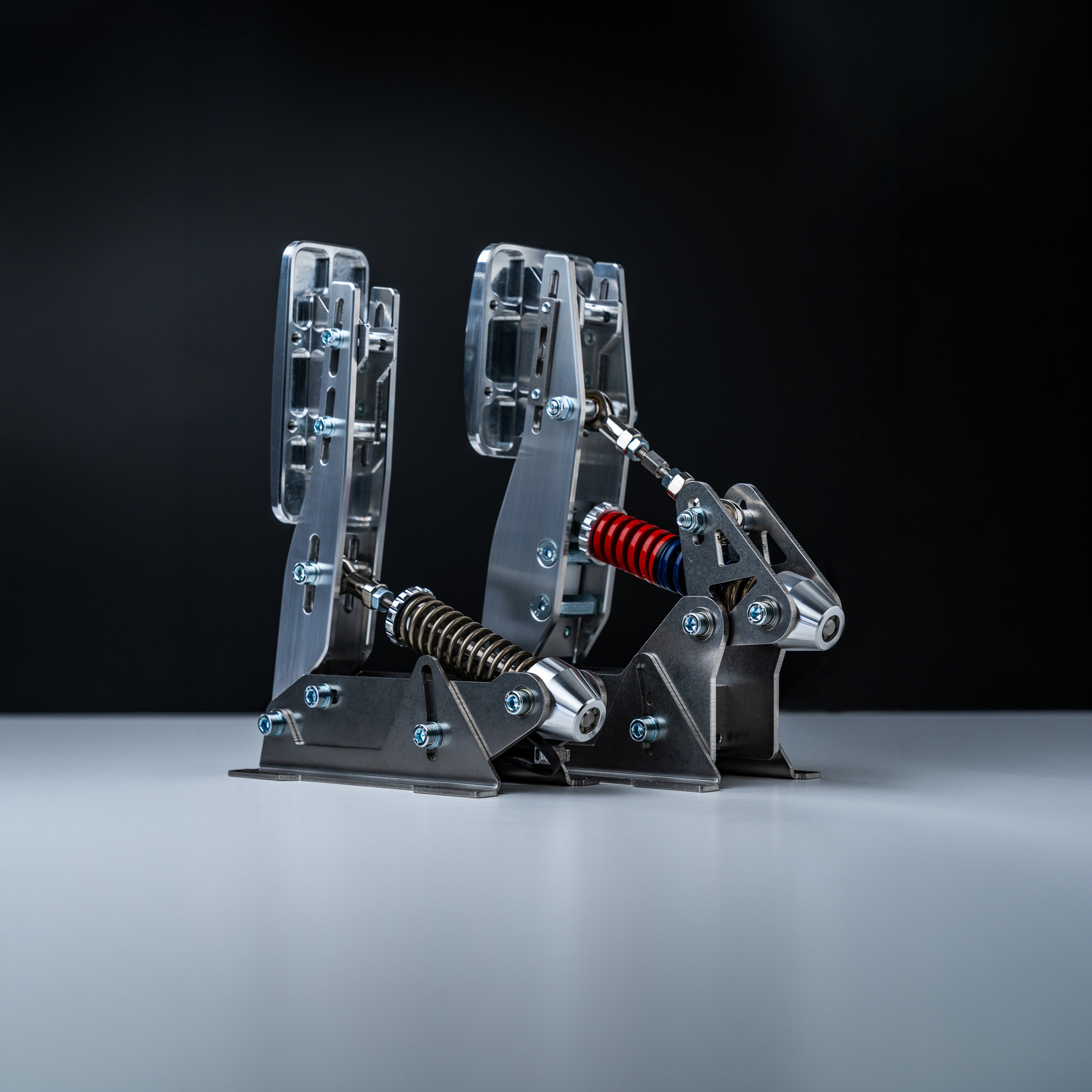

2 Pedal Set
2 Pedal Set
Couldn't load pickup availability
Engineered for precision, strength, and adjustability, PRL Pedals combine load-cell sensing, CNC-machined aluminium, stainless steel construction, and advanced configuration software in a compact, motorsport-inspired pedal platform.
Designed to suit a wide range of driving styles, the throttle and brake offer extensive mechanical adjustment, from pedal face position and tilt through to travel, preload, and response feel.
Show More
Show More
Load cells throughout for accurate, repeatable pedal input
CNC-machined 6061 aluminium pedal arms and faces
Laser-cut 304L stainless steel base structure
Adjustable pedal face height, tilt, position, and overall pedal angle
Brake pedal force up to 150 kg
Throttle force adjustable from 2.8 kg to 12.2 kg at full throw
Integrated 16-bit controller with minimal latency
Plug-and-play USB connection
Advanced configuration software with custom response curves and multiple profiles
Made in the Netherlands
Specifications
Specifications
General
Pedal face height adjustment: ±15 mm
Pedal face tilt adjustment: ±10°
Effective pedal face contact height adjustment: Up to 70 mm
Overall pedal tilt adjustment: Up to 20°
Forwards / rearwards pedal position adjustment: ±12.5 mm
Main pedal material: CNC-machined 6061 aluminium
Base structure material: Laser-cut 304L stainless steel
Finish: Brushed and tumbled
Major pivots: Shielded, flanged ball bearings
Linkage pivots: Hardened chrome steel, PTFE-lined spherical rod ends
End stops: Polyurethane damped
Electronics: Integrated 16-bit controller
Connection: USB
Platform compatibility: Microsoft Windows only
Throttle Pedal
Full throw end-stop adjustment: 10° to 22.5°
Linear travel range: 24.9 mm to 67.4 mm
Minimum full-throw pedal force: 2.8 kg
Maximum full-throw pedal force: 12.2 kg
Maximum safe preload force at rest: 4.2 kg
Overall dimensions at default pedal height: 188.4 × 78 × 245.6 mm
Pedal face dimensions: 50 × 130 mm
Mass: 1.18 kg
Brake Pedal
Maximum pedal force: Up to 150 kg
Full throw end-stop adjustment: 10° to 21.2°
Linear travel range: 27.5 mm to 69.2 mm
Softest setting response: ~33 mm at 25 kg / ~69 mm at 75 kg
Stiffest setting response: ~6 mm at 25 kg / ~16 mm at 75 kg
Overall dimensions at default pedal height: 195.5 × 88 × 245.9 mm
Pedal face dimensions: 80 × 100 mm
Mass: 1.96 kg
What’s Included
What’s Included
Throttle pedal
Brake pedal
USB-C to USB-A cable
Extra red spring, stiff
Extra blue spring, soft
Spring limiting spacers
Allen key set, 1.5–6 mm
Laser-cut spanners, ×2
Haptic mounts, ×2
70 mm tie-rod
Pedal face connection plate
M5 × 10 mm mounting screws, ×4
M6 × 12 mm mounting screws, ×12
M6 × 25 mm mounting screws, ×12
M5 washers, ×4
M6 washers, ×24
M6 locknuts, ×12
